WEIDMULLER EV CHARGER/PRODUCT MODEL: AC SMART ECO, AC SMART VALUE, AC SMART ADVANCE
Ultech Engineering Sdn BhdType: Sale
PRODUCT NAME: EV CHARGER (WEIDMULLER)
PRODUCT MODEL: AC SMART ECO, AC SMART VALUE, AC SMART ADVANCE
PRODUCT MODEL: AC SMART ECO, AC SMART VALUE, AC SMART ADVANCE
Description
PRODUCT NAME: EV CHARGER (WEIDMULLER)
PRODUCT MODEL: AC SMART ECO, AC SMART VALUE, AC SMART ADVANCE
• STAND ALONE CHARGING BOX
• MAX. CHARGING POWER FROM 7.4 TO 22 KW
• POWER CONNECTION: 1-PHASE 230 V / 32 A, 3-PHASE 400 V / 16 A OR 32 A
• TYPE 2 SOCKET OR ATTACHED 5 M TYPE 2 CHARGING CABLE
• STATUS AND CONFIGURATION BY APP AND INTEGRATED WEB SERVER
• SWITCH FUNCTIONALITY TO CONNECT SEVERAL CHARGING BOXES IN LINE
• MAX. CHARGING POWER FROM 11 TO 22 KW
• POWER CONNECTION: 3-PHASE 400 V / 16 A OR 32 A
• TYPE 2 SOCKET OR ATTACHED 5 M TYPE 2 CHARGING CABLE
• RFID AUTHENTICATION
• DATA COMMUNICATION ACC. TO OCPP 1.6 (J)
• MAX. CHARGING POWER FROM 11 TO 22 KW
• POWER CONNECTION: 3-PHASE 400 V / 16 A OR 32 A
• TYPE 2 SOCKET OR ATTACHED 5 M TYPE 2 CHARGING CABLE
• MOBILE COMMUNICATION MODEM (4G/LTE) INCL. LIFETIME SIM
• DATA COMMUNICATION ACC. TO OCPP 1.6 (J)
PRODUCT MODEL: AC SMART ECO, AC SMART VALUE, AC SMART ADVANCE

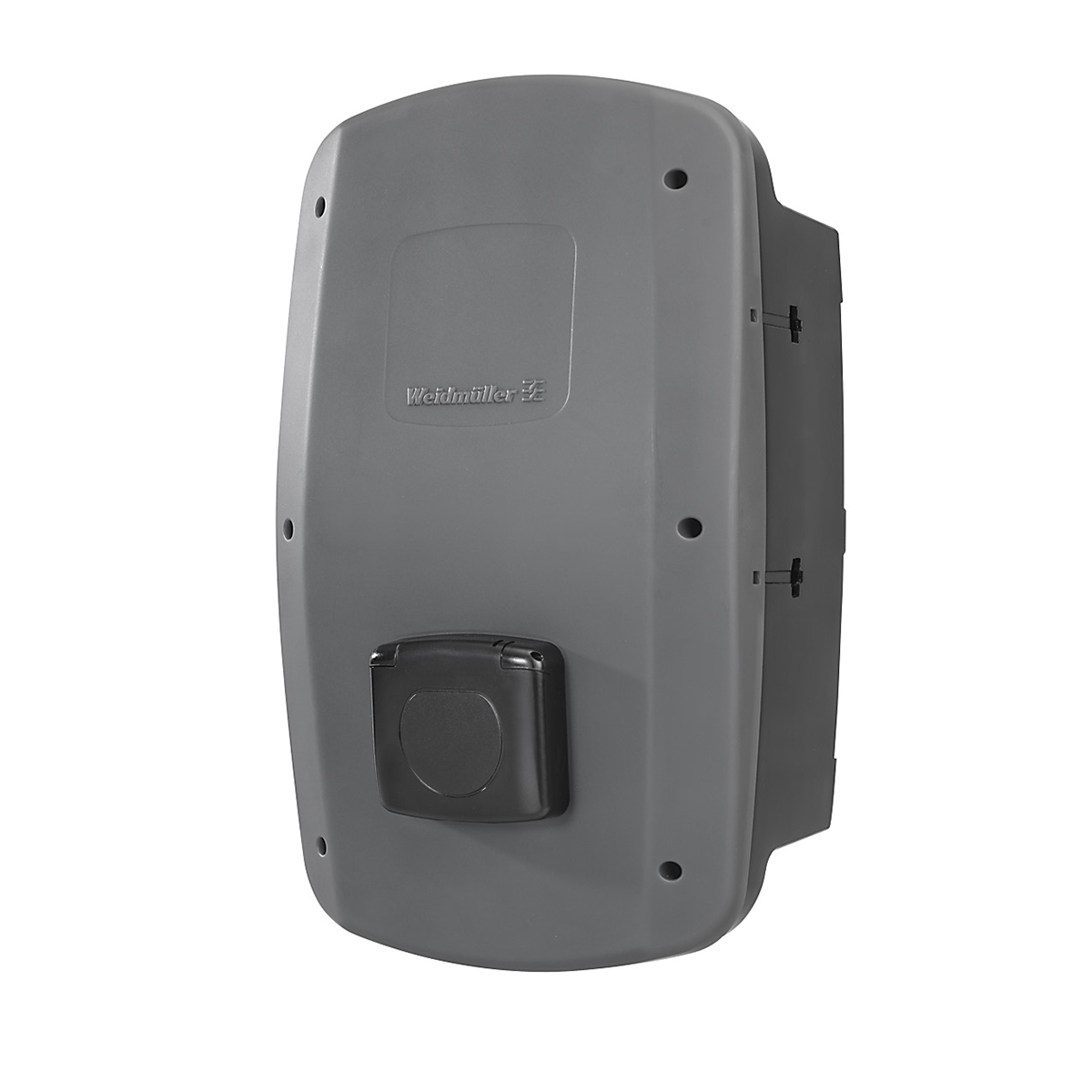

A) AC SMART ECO
THE AC SMART ECO CAN BE INTEGRATED EASILY AND EFFICIENTLY INTO EXISTING ENVIRONMENTS AND SAVES COST-INTENSIVE RENOVATIONS OF THE OF THE BUILDING'S ELECTRICAL INSTALLATION. THE CHARGING BOX CAN BE NETWORKED VIA INTERFACES WITH ANY EXISTING BUILDING AUTOMATION SYSTEM TO CHARGE YOUR ELECTRIC CAR EFFECTIVELY.• STAND ALONE CHARGING BOX
• MAX. CHARGING POWER FROM 7.4 TO 22 KW
• POWER CONNECTION: 1-PHASE 230 V / 32 A, 3-PHASE 400 V / 16 A OR 32 A
• TYPE 2 SOCKET OR ATTACHED 5 M TYPE 2 CHARGING CABLE
• STATUS AND CONFIGURATION BY APP AND INTEGRATED WEB SERVER

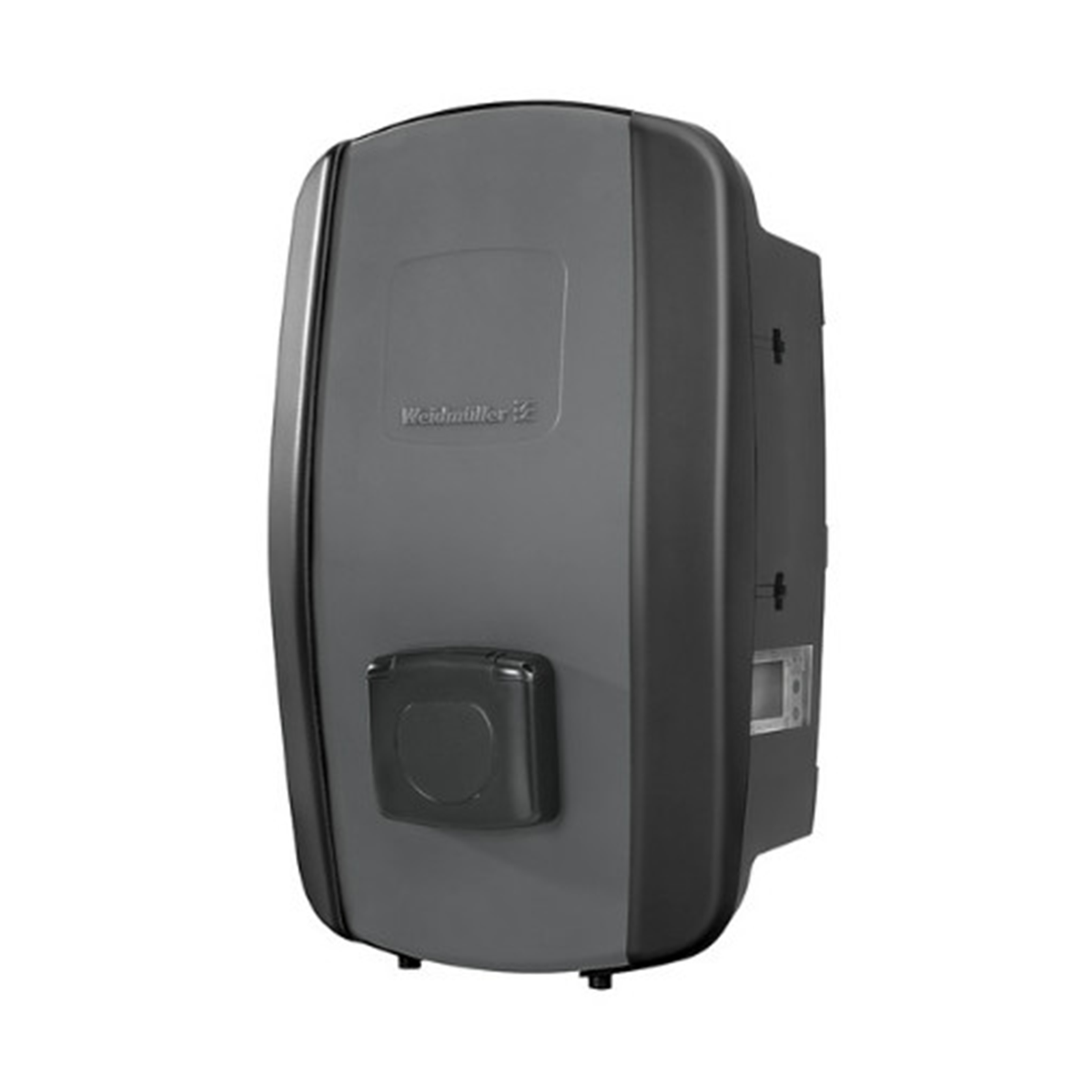

B) AC SMART VALUE
THE INTEGRATED STATIC LOAD MANAGEMENT PREVENTS OVERLOADING OF THE EXISTING ELECTRICAL INSTALLATION AND EFFICIENTLY DISTRIBUTES THE AVAILABLE RESOURCES TO ALL CONNECTED EV CHARGING BOXES. THROUGH THE INTEGRATED ENERGY MEASUREMENT, CONSUMPTION DATA CAN BE RECORDED AND, IF NECESSARY, TRANSMITTED AND PROCESSED VIA THE MOBILE APP OR THE LOCAL NETWORK. INTEGRATION INTO AN ALREADY EXISTING BUILDING AUTOMATION SYSTEM IS ALSO POSSIBLE IN ORDER TO REALISE A NETWORK-BASED BIDIRECTIONAL CHARGING CONTROL.• SWITCH FUNCTIONALITY TO CONNECT SEVERAL CHARGING BOXES IN LINE
• MAX. CHARGING POWER FROM 11 TO 22 KW
• POWER CONNECTION: 3-PHASE 400 V / 16 A OR 32 A
• TYPE 2 SOCKET OR ATTACHED 5 M TYPE 2 CHARGING CABLE
• RFID AUTHENTICATION
• DATA COMMUNICATION ACC. TO OCPP 1.6 (J)
C) AC SMART ADVANCE
THESE FEATURES INCLUDE SECURE AND CONVENIENT ACCESS CONTROL VIA RFID/NFC, MOBILE APP OR POWERLINE COMMUNICATION DIRECTLY WITH THE CAR. IN ADDITION, MID-COMPLIANT RECORDING OF CHARGING DATA AND SECURE BACK-END COMMUNICATION VIA OCPP 1.6 USING ETHERNET- OR MOBILE RADIO-BASED DATA TRANSMISSION. ALSO AN INTEGRATED, DYNAMIC LOAD MANAGEMENT FOR AN EFFICIENT AND COST-OPTIMISED USE OF THE EXISTING ELECTRICAL INSTALLATION, EVEN WITH SEVERAL CHARGING BOXES DYNAMIC LOAD/CHARGE MANAGEMENT INTEGRATED• MAX. CHARGING POWER FROM 11 TO 22 KW
• POWER CONNECTION: 3-PHASE 400 V / 16 A OR 32 A
• TYPE 2 SOCKET OR ATTACHED 5 M TYPE 2 CHARGING CABLE
• MOBILE COMMUNICATION MODEM (4G/LTE) INCL. LIFETIME SIM
• DATA COMMUNICATION ACC. TO OCPP 1.6 (J)
